Frame, Seat Back, Rear: Removal

Courtesy of CHRYSLER GROUP, LLC

NOTE:

The seat back and seat cushion frames are serviced as an assembly.

Remove the rear seat back cover.
Refer to COVER, SEAT BACK, SECOND ROW, REMOVAL .

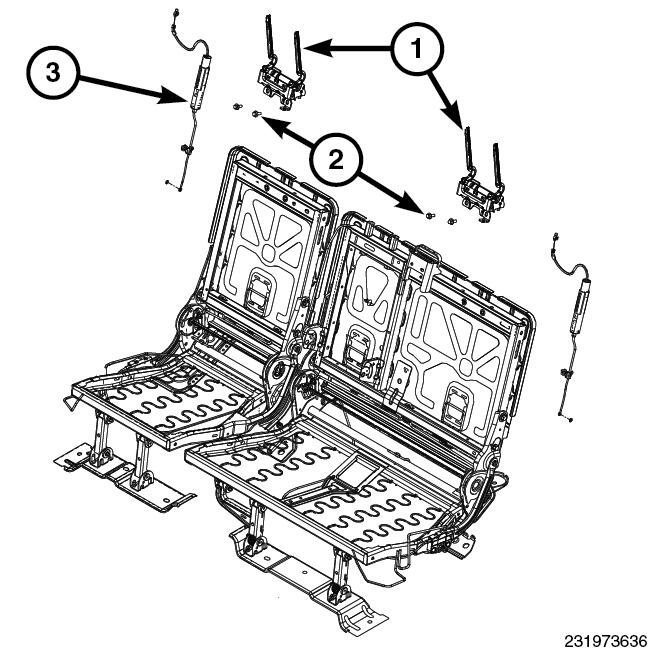

Remove the bolts (2) and remove the headrest assemblies (1).
Remove the headrest release cables (3).
Remove the rear seat cushion cover.
Refer to COVER, SEAT CUSHION, SECOND ROW, REMOVAL .
Remove wire harnesses, if equipped.
