Cover, Seat Cushion, Third Row: Removal

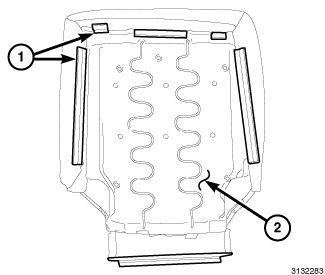

GC0145801Courtesy of CHRYSLER GROUP, LLC
  1. Release the j-straps (1) and separate the seat cushion assembly from the seat pan.
    GC0145768Courtesy of CHRYSLER GROUP, LLC
  2. Unwrap the seat cushion cover from the seat cushion foam and release the hook and loop fasteners.
  3. While pulling down on the side of the seat cushion foam (3), slide out the retaining clips to separate the cover (1) from the foam.
