Cover, Seat Back, Third Row: Removal

GC0145793Courtesy of CHRYSLER GROUP, LLC

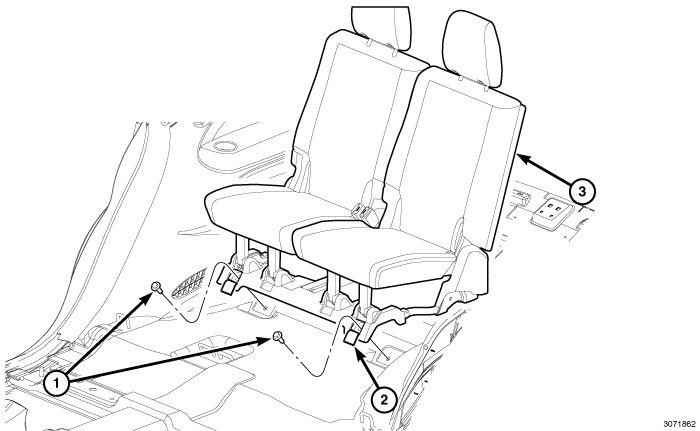

  1. Remove the 3rd row seat assembly. Refer to SEAT, FRONT, REMOVAL .
  2. Remove the headrest. Refer to HEADREST, FRONT, REMOVAL .
    GC0145795Courtesy of CHRYSLER GROUP, LLC

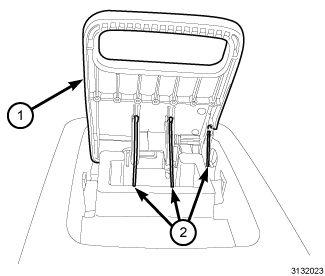

  3. Lift the seat back fold handle (1) and disconnect the cables (2).
    GC0153835Courtesy of CHRYSLER GROUP, LLC

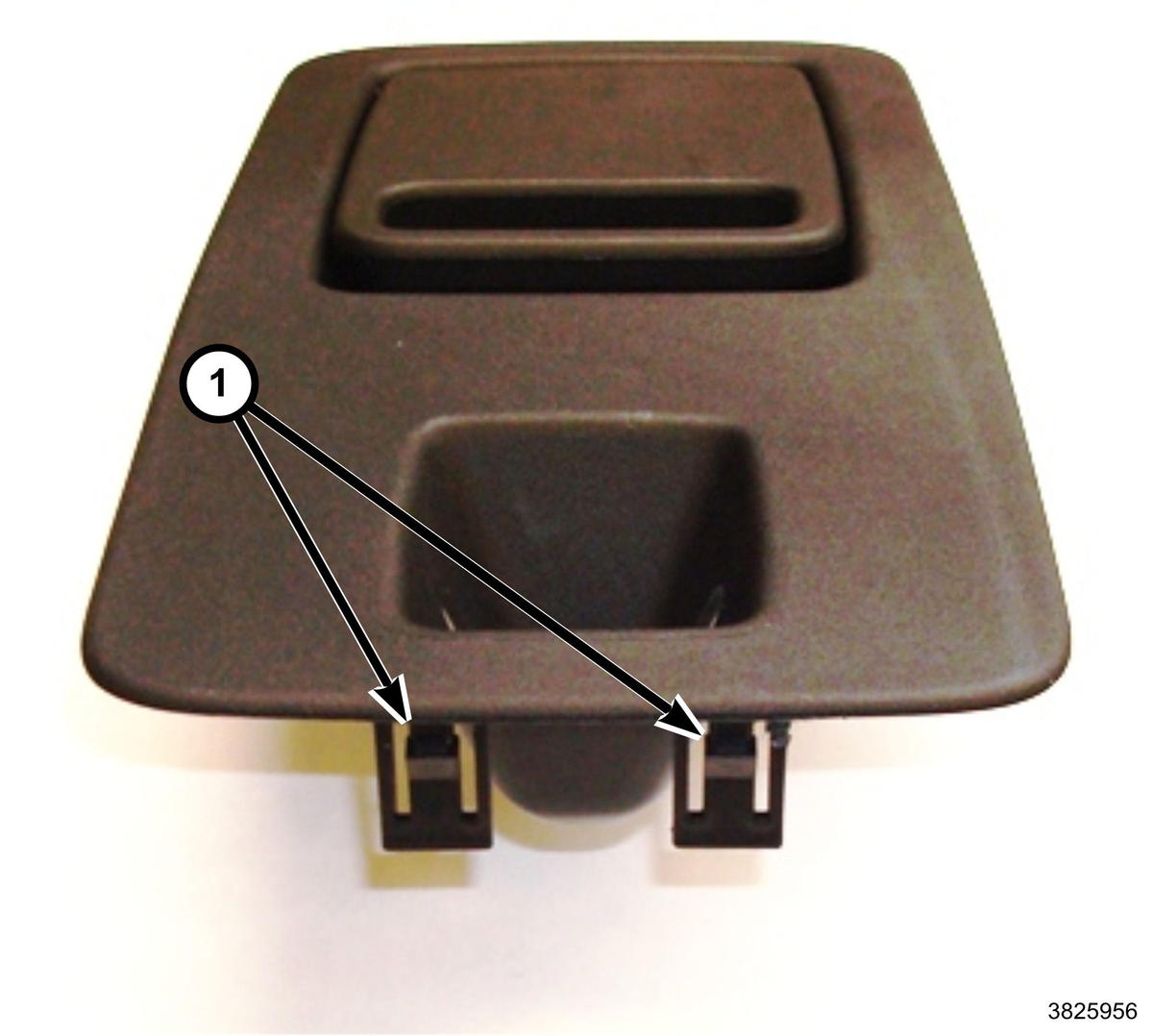

  4. Using a (special tool #C-4755, Trim Stick) or equivalent, release the two lower tabs (1).
    GC0153834Courtesy of CHRYSLER GROUP, LLC
  5. Using a (special tool #C-4755, Trim Stick) or equivalent, separate the center retaining clip (1).
    GC0153836Courtesy of CHRYSLER GROUP, LLC

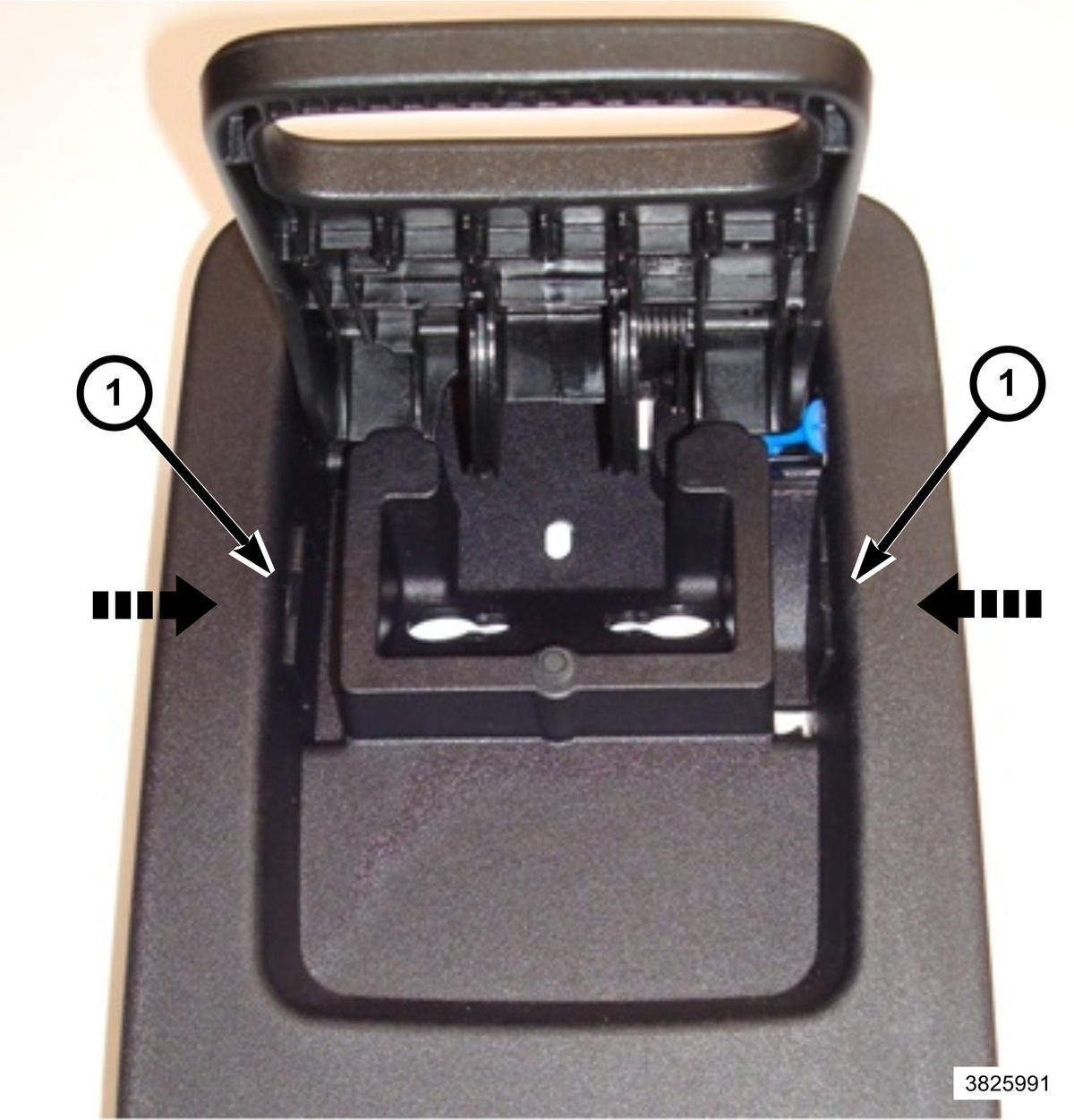

  6. Using a small flat bladed tool, release the two side clips (1), lift and remove the handle assembly.
    GC0145797Courtesy of CHRYSLER GROUP, LLC
  7. Unzip the seat back cover.

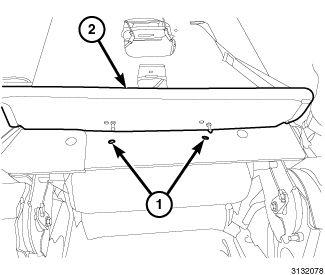

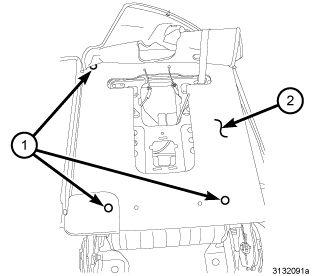

  8. Release the lower cover push pins (1) and fold up the back of the cover (2).
    GC0145798Courtesy of CHRYSLER GROUP, LLC

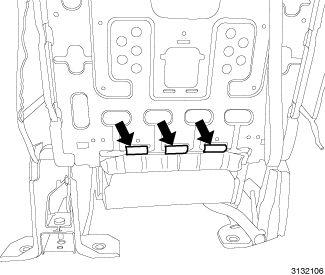

  9. Release the push pin fasteners (1) and remove the seat back panel (2).
    GC0145799Courtesy of CHRYSLER GROUP, LLC

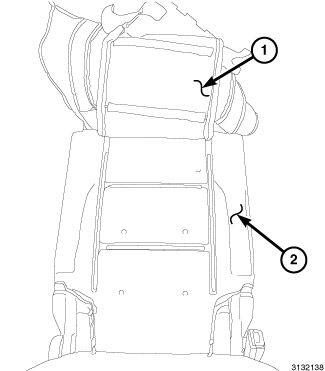

  10. Release the lower seat cover straps.
    GC0145800Courtesy of CHRYSLER GROUP, LLC
  11. Remove the seat back cover (1) and remove the seat back foam (2) from the seat back frame.
