Cover - 60% Seat Back

Courtesy of CHRYSLER GROUP, LLC

Place the seat back face down on a clean work surface.
Remove the outer headrest. Refer to HEADREST, FRONT, REMOVAL .

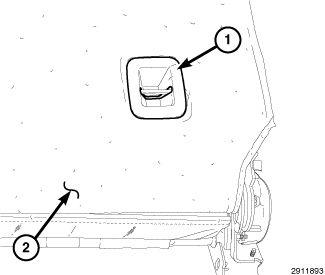

Using (special tool #C-4755, Trim Stick) or equivalent, remove the anchor bezels (1) from the seat back panel (2).

Courtesy of CHRYSLER GROUP, LLC

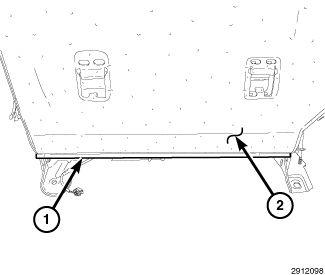

Release the seat back cover lower J-straps (1).

Courtesy of CHRYSLER GROUP, LLC

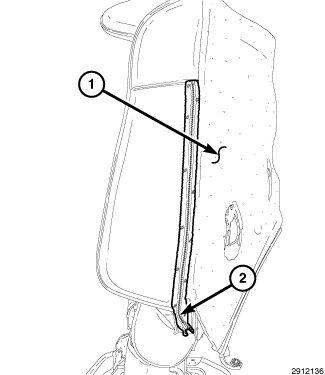

Release the two side zippers (2).

Courtesy of CHRYSLER GROUP, LLC

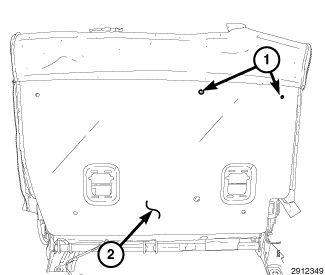

Open the seat back cover and remove the upper push pins (1) from the seat back panel (2).
Remove the lower push pins and release the seat cover straps.
Remove the seat back panel (2).

Courtesy of CHRYSLER GROUP, LLC
Push in the buttons on both headrest sleeves, pull the center headrest up and remove.

Courtesy of CHRYSLER GROUP, LLC
Remove the center seat belt bezel.

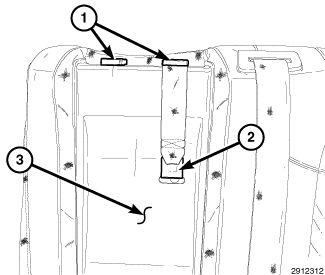

Release the strap (2) and remove the center headrest sleeves (1).
Remove the armrest trim (3).

Courtesy of CHRYSLER GROUP, LLC

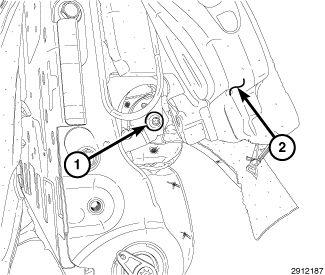

Position aside the right side cushion and cover (2) and remove the armrest pivot bolt (1).

Courtesy of CHRYSLER GROUP, LLC

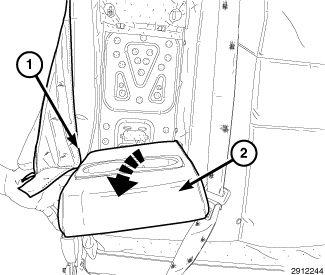

Rotate the right side (1) of the armrest (2) down and release the armrest from the seat back assembly.

Courtesy of CHRYSLER GROUP, LLC

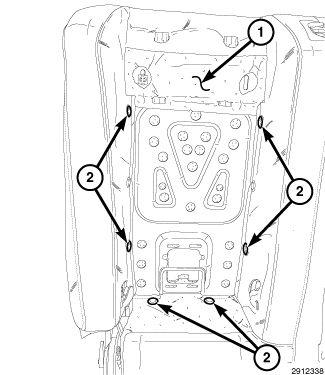

Remove the eight push pin fasteners (2) and separate the upper cover (1) at the headrest mount.

Courtesy of CHRYSLER GROUP, LLC
Separate the seat back cushion and cover from the frame and remove.
Open the cover (1) and expose the strip fasteners (2).
While pulling down on the seat cushion foam (3), slide the strip fasteners (2) out of the foam and release.
