Armrest, Second Row: Removal

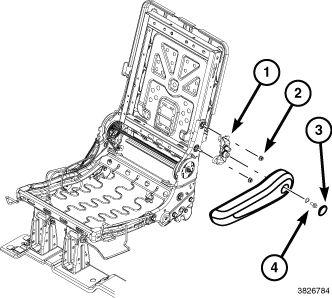

GC0153837Courtesy of CHRYSLER GROUP, LLC
  1. Using (special tool #C-4755, Trim Stick)or equivalent, remove the armrest bolt cover (3).
  2. Remove the bolt and washer (4) and remove the armrest.
  3. Remove the seat back cover, if necessary. Refer to COVER, SEAT BACK, SECOND ROW, REMOVAL .
  4. Remove the two nuts (2) and remove the armrest pivot assembly (1).
