Panel, Instrument Panel Trim, Center: Removal

Courtesy of CHRYSLER GROUP, LLC

1. Remove the floor console. Refer to CONSOLE, FLOOR, REMOVAL .
2. Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL .
3. Remove the glove box. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL .
4. Remove the instrument panel center trim bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL .

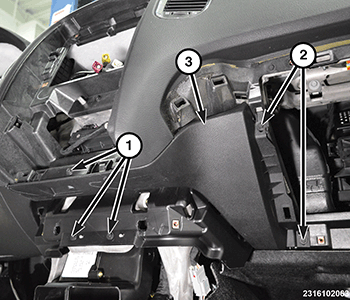

5. Remove the screws (2) on both side of the center trim panel (3).
6. Remove the screws (1) and the center trim panel.
