Rack, Luggage: Removal

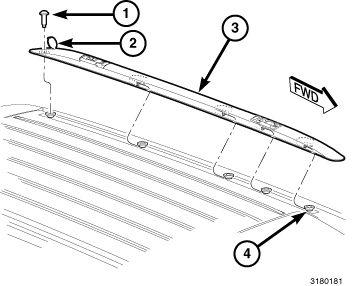

GC0146420Courtesy of CHRYSLER GROUP, LLC
  1. Open the end cover (2).
  2. Remove the mounting bolt (1).
  3. Slide the rack (3) reward and release the rack assembly from the riv-nut fasteners (4).
