Body, Air Cleaner: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL .
    GC0173656Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the electrical connector from the Inlet Air Temperature (IAT) sensor (1).
    GC0173627Courtesy of CHRYSLER GROUP, LLC
  4. Loosen the clamp (1) at the throttle body.
  5. Loosen the clamp (2) at the air cleaner body.
  6. Disengage the air cleaner assembly from the rubber grommets (2).
  7. Remove the resonator.

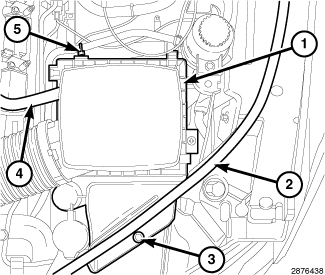

    GC0146184Courtesy of CHRYSLER GROUP, LLC
  8. Disconnect the fresh air makeup hose (4) from the air cleaner body.
  9. Disengage the hose retainer (5) from the air cleaner body.
  10. Remove the push pin (3).
  11. Reposition the hood seal (2) and pull the air cleaner body (1) straight up off of the locating pins.
