Body - Interior & Exterior: Exterior: Grille: Removal

Courtesy of CHRYSLER GROUP, LLC

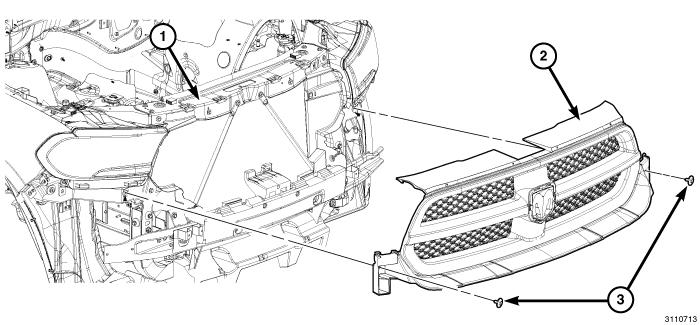

1. Remove the front fascia assembly. Refer to FASCIA, FRONT, REMOVAL .
2. Remove the two lower fasteners (3) that secure the radiator grille assembly (2) to the vehicle.
3. Pull up and release the four upper retaining tabs (1) across the radiator core support and remove the grille assembly.
