Sensor, Sun: Description
NOTE:

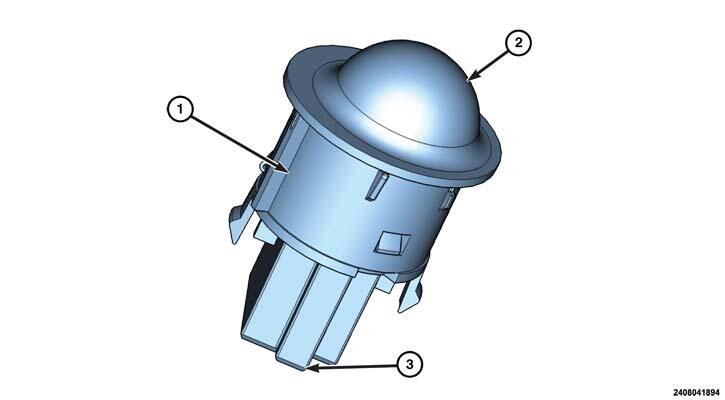

Typical sun sensor assembly shown in the illustration.
The Automatic Temperature Control (ATC) heating and A/C system uses a sun sensor assembly (1) to measure sun light intensity. The sun sensor assembly incorporates three sun sensors within a molded plastic case with a clear lens (2), that protrudes through the center of the defroster grille. The wire harness receptacle (3) connects the sun sensors to the vehicle electrical system through a wire lead and connector of the instrument panel wire harness.
