Unit, ELECTROHYDRAULIC Control: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE:

If either the electro-hydraulic control unit or transmission is being reconditioned (clutch/seal replacement) or replaced, it is necessary to perform the TCM Adaptation Procedure using the scan tool (Refer to TRANSMISSION CONTROL MODULE (TCM) ADAPTATION - NAG1 .

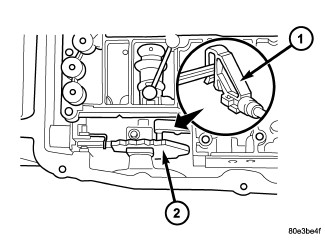

Courtesy of CHRYSLER GROUP, LLC

1 - SELECTOR VALVE

2 - DETENT PLATE

Position the electrohydraulic unit in the transmission housing.

Insert selector valve (1) in driver of detent plate (2). When installing the electrohydraulic control module in the transmission housing, the plastic part of the selector valve (1) must engage in the driver of the detent plate (2).

Courtesy of CHRYSLER GROUP, LLC

1 - HEAT SHIELD

2 - ELECTROHYDRAULIC UNIT

3 - BOLT

4 - OIL FILTER

5 - OIL PAN

6 - CLAMPING ELEMENT

7 - BOLT

8 - 13-PIN PLUG CONNECTOR

9 - BOLT

10 - ADAPTER PLUG

Install the Torx® socket bolts (3) and torque to 8 N.m (71 in.lbs.).
Install a new oil filter (4).
Install oil pan (5) and torque the oil pan bolts to 8 N.m (71 in.lbs.).
Install the adapter plug (10) into the transmission housing and tighten the bolt (9) to 2.5 N.m (22 in.lbs.).

Courtesy of CHRYSLER GROUP, LLC

1 - PLUG CONNECTOR

2 - ADAPTER PLUG
Check O-ring on plug connector (1), and replace if necessary.
Install the plug connector (1) into the adapter plug (2). Turn bayonet lock of adapter plug (2) clockwise to connect plug connector (1).
Fill the transmission with the correct oil (Refer to CAPACITIES AND RECOMMENDED FLUIDS using the standard procedure. Refer to FLUID AND FILTER, STANDARD PROCEDURE .
