Command Valve
WARNING: This page is about a different variant/trim than selected.

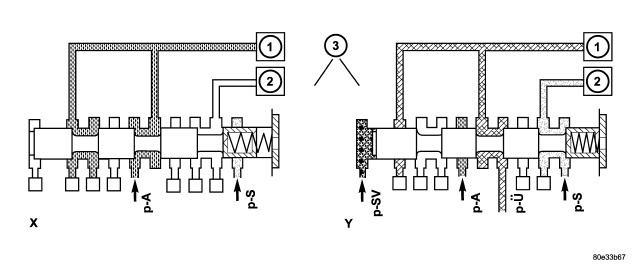

| 1 - HOLDING CLUTCH B1 |
| 2 - DRIVING CLUTCH K1 |
| 3 - 1-2/4-5 COMMAND VALVE |
Each shift group possesses one command valve (3) . The 1-2 / 4-5 and 2-3 command valves are installed in the shift valve housing, the 3-4 command valve is installed in the valve housing. The command valve switches the shift group from the stationary phase to the shift phase and back again.
