Floor Shifter
WARNING: This page is about a different variant/trim than selected.

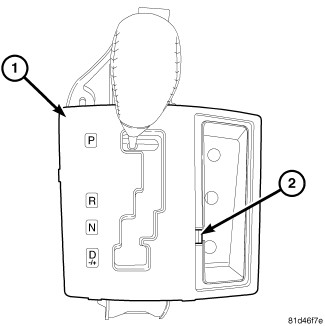

The automatic transmission is operated with the help of a shift lever assembly (SLA) (1) located in the floor console. There are four positions to which the selection lever can be shifted: P, R, N, D. In addition, the selector lever can be moved sideways (+/-) in position "D" to adjust the shift range.
All selector lever positions, as well as selected shift ranges in position "D", are identified by the SLA. The information is then sent to the transmission control module (TCM) via an electrical connection. At the same time, the selector lever positions "P", "R", "N" and "D" are transmitted by a shift cable to the selector shaft in the transmission.
The SLA is comprised of the following functions:
- Key lock: Depending on the selector lever position, the ignition cylinder is locked/unlocked, i.e., the ignition key can be removed only if the selector lever is in position "P". An electronic micro switch in the shifter assembly is used to perform this function.
- Park lock: The selector lever is not released from position "P" until the brake pedal has been applied and the ignition key is in the ON" position. Shift lock is controlled by the ignition module in conjunction with the brake switch and a locking solenoid in the SLA. As soon as the brake pedal is applied firmly, the locking solenoid is energized and retracted to unlock the selector lever. If the selector lever cannot be moved out of position "P" due to a malfunction, the shift lock function can be overriden (2).
- Reverse inhibitor: As soon as the vehicle speed exceeds approximately 4-7 mph, it is no longer possible to move the selector lever from position "N" to position "R". The reverse inhibit functionality is controlled by the same solenoid as the park lock. As the vehicle accelerates past the calibrated speed threshold, the solenoid is energized to block the sideways motion of the shift lever necessary to move from NEUTRAL to REVERSE. The reverse inhibit is not released until the vehicle speed falls below approximately 4-7 mph and the shifter is moved out of the "D" shifter position.
