Seal, Torque Converter Hub: Installation

WARNING: This page is about a different variant/trim than selected.

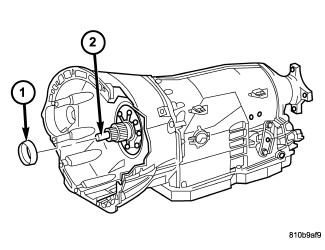

GC0081308Courtesy of CHRYSLER GROUP, LLC
1 - TORQUE CONVERTER HUB SEAL
2 - INPUT SHAFT
  1. Position the torque converter hub seal (1) over the input shaft and against the transmission oil pump.

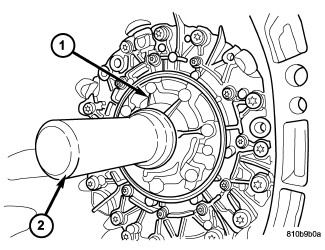

    GC0095853Courtesy of CHRYSLER GROUP, LLC
    1 - OIL PUMP
    2 - SEAL INSTALLER 8902A
  2. Using Seal Installer (special tool #8902A, Installer, Seal) (2), install a new torque converter hub seal.
  3. Install the torque converter. Refer to TORQUE CONVERTER, INSTALLATION .
