Seal, Fill Tube: Installation
WARNING: This page is about a different variant/trim than selected.

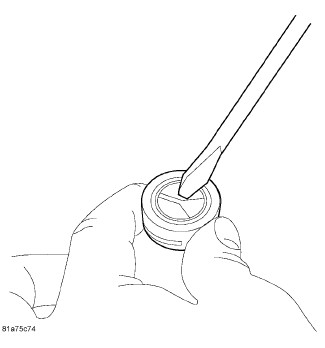

- Pierce the new transmission fill tube seal along the molded "Y" from the outside.

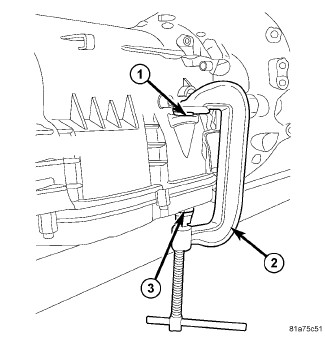

1 - SEAL INSTALLER DISC 9902 2 - "C" CLAMP 3 - SHIM STOCK NOTE:If the new fill tube seal can not be fully installed into the transmission case fill tube bore by hand, a "C" clamp must be used.
CAUTION:Do not over tighten the "C" clamp during fill tube oil seal installation. Transmission oil pan damage or bending may occur.
- Lubricate the new transmission fill tube seal with MOPAR® ATF+4 ATF and install the new fill tube seal into the transmission case fill tube bore.
- Position seal installer disc (special tool #9902, Installer, Seal) (1) between the "C" clamp (2) and the new transmission fill tube seal
- Position a shim stock (3) between the "C" clamp (2) and the edge of the transmission oil pan.
- Lightly tighten the "C" clamp until the fill tube seal is fully installed into the transmission case fill tube bore.
- Clean and lubricate the end of the transmission fill tube with MOPAR® ATF+4 ATF and install the fill tube into the transmission case fill tube bore.

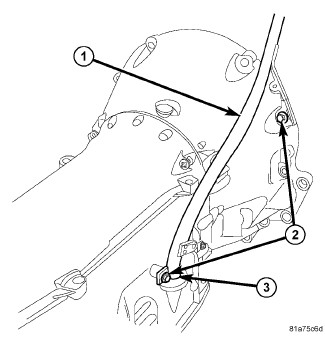

1 - FILL TUBE 2 - FILL TUBE BOLTS 3 - FILL TUBE SEAL - Loosely install the fill tube bolts (2).
- Tighten the upper fill tube bolt to 39 N.m (29 ft.lbs.).
- Tighten the lower fill tube bolt to 12 N.m (105 in.lbs.).

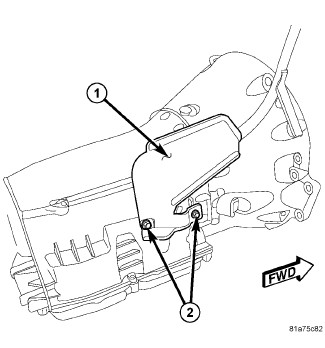

1 - WATER SHIELD 2 - WATER SHIELD BOLTS - Install the water shield (1) and water shield bolts (2) (if equipped).
- Tighten the water shield bolts to 12 N.m (9 ft.lbs).
- Lower vehicle to check and fill transmission as necessary.
