Pump, Transmission Oil: Disassembly
WARNING: This page is about a different variant/trim than selected.
 Courtesy of CHRYSLER GROUP, LLC
|

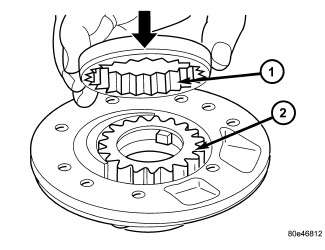

| 1 - OUTER PUMP ROTOR |
| 2 - INNER PUMP ROTOR |
- Remove pump gears (1 and 2) from pump housing.
 Courtesy of CHRYSLER GROUP, LLC
|
| 1 - INNER OIL SEAL |
| 2 - OUTER OIL SEAL |
- Remove the inner oil pump seal (1).
- Replace the outer oil pump O-ring (2).
