Activation Sequence
WARNING: This page is about a different variant/trim than selected.

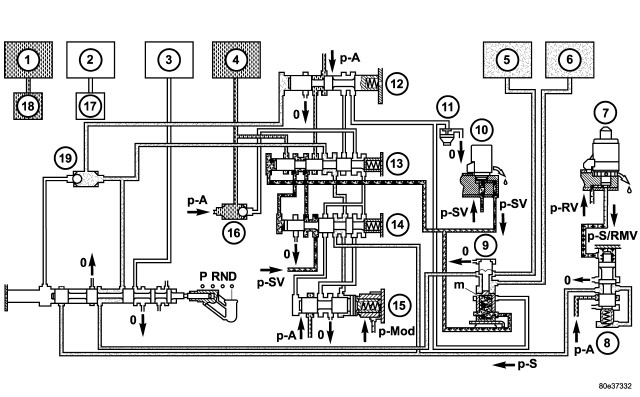

| 1 - HOLDING CLUTCH B1 |
| 11 - PRESSURE HOLDING VALVE |
| 2 - DRIVING CLUTCH K1 |
| 12 - 3-4 HOLDING PRESSURE SHIFT VALVE |
| 3 - HOLDING CLUTCH B3 |
| 13 - 3-4 COMMAND VALVE |
| 4 - DRIVING CLUTCH K3 |
| 14 - 3-4 SHIFT PRESSURE SHIFT VALVE |
| 5 - HOLDING CLUTCH B2 PISTON |
| 15 - 3-4 OVERLAP REGULATING VALVE |
| 6 - HOLDING CLUTCH B2 PISTON OPPOSING FACE |
| 16 - BALL VALVE |
| 7 - SHIFT PRESSURE REGULATING SOLENOID |
| 17 - 1-2/4-5 COMMAND VALVE |
| 8 - SHIFT PRESSURE REGULATING VALVE |
| 18 - 1-2/4-5 COMMAND VALVE |
| 9 - SHIFT VALVE B2 |
| 19 - BALL VALVE |
| 10 - 3-4 SHIFT SOLENOID |
The selector valve opens the shift pressure (p-S) feed connection from the ball valve (19) with the shift valve B2 (9). With the shift valve B2 (9) in the upper position, shift pressure (p-S) travels behind the piston B2 (5) and simultaneously to the opposing face of the piston B2 (6). The multiple-disc holding clutch B2 begins to close.
The pressure on the opposing face of the piston B2 (6) ensures a soft activation of the multiple-disc holding clutch B2.
