BTSI Override

WARNING: This page is about a different variant/trim than selected.

NOTE:

Some shifter assemblies may have a small external trim cover to actuate the Brake Transmission Shifter/Ignition Interlock (BTSI).

Courtesy of CHRYSLER GROUP, LLC

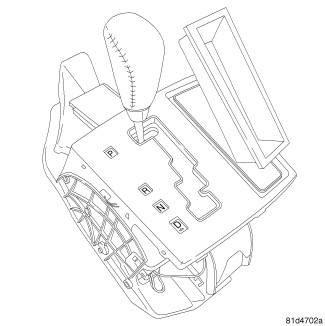

1 - SHIFTER ASSEMBLY

2 - BTSI OVERRIDE

In the event of an electrical failure, the vehicle can be shifted out of PARK by using the following procedure.

Courtesy of CHRYSLER GROUP, LLC

Turn the key to the ACC or ON position.
Remove the liner to the cubby bin to the right side of the shifter.

Courtesy of CHRYSLER GROUP, LLC
Depress the BTSI override (2) on the side of the shifter assembly (1).
While the override is depressed, move the shifter out of the PARK position.
Return the cubby bin liner to its original location.
