Column Mount

WARNING: This page is about a different variant/trim than selected.
  1. Place the shifter in PARK
  2. Raise the vehicle.
    GC0095837Courtesy of CHRYSLER GROUP, LLC
  3. Remove the gearshift cable retaining clip (4) (if equipped).
  4. Disconnect the gearshift cable (1) from the shift lever (3), and remove cable from bracket (2).
  5. Lower the vehicle.
  6. Remove the instrument panel side trim.
  7. Remove the knee bolster fasteners, and the knee bolster.
  8. If equipped, disconnect the trunk release harness connector from the trunk release switch on the knee bolster.
    GC0080510Courtesy of CHRYSLER GROUP, LLC
  9. Remove the screws (3), and the instrument panel steering column cover reinforcement (1).
    GC0095831Courtesy of CHRYSLER GROUP, LLC
  10. Remove the silencer panel fasteners and silencer panel (1).

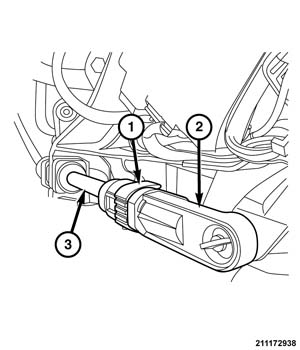

    GC0154682Courtesy of CHRYSLER GROUP, LLC
  11. Disconnect the shift cable (3) from the ball stud (2).
  12. Disconnect the shift cable (3) from to cable bracket.
    GC0095832Courtesy of CHRYSLER GROUP, LLC
  13. Remove the shifter cable grommet (3) from the opening in the dash panel (4), and remove the shifter cable.
