Panel, A-Pillar Trim: Removal

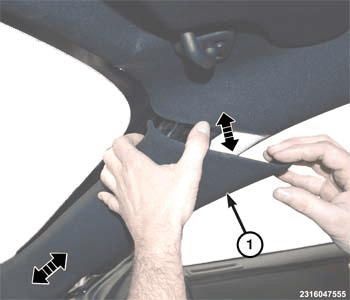

GC0162385Courtesy of CHRYSLER GROUP, LLC
  1. By hand pull at the top of the A-pillar trim panel (1) and release it from the body. Do not remove the A-pillar trim.
  2. Pull the A-pillar trim panel upward to separate it from the instrument panel.

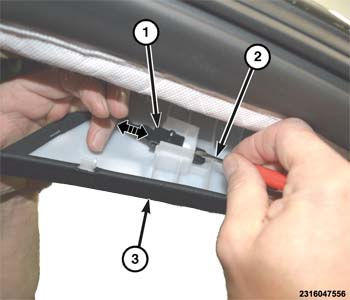

    GC0162394Courtesy of CHRYSLER GROUP, LLC
  3. Using a flat bladed tool (2), press the tab to disengage the tether (1) and slide it out of A-pillar trim panel (3).
