DECKLID/Hatch/Liftgate/Tailgate/Swing Gate: Latch: Removal

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect and isolate the negative battery cable.
2. Remove the push fasteners (1) and the decklid hinge covers (2).

   Courtesy of CHRYSLER GROUP, LLC

3. Remove the pull handle cover (1), remove the screws and the pull handle (2).
4. Remove the push fasteners (4) and the decklid trim cover (3).

   Courtesy of CHRYSLER GROUP, LLC

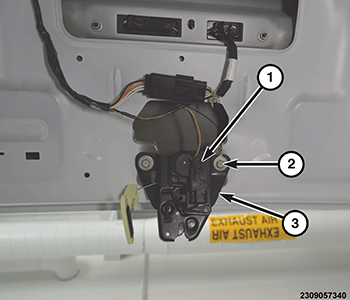

5. Using a grease pencil or equivalent, mark the position of the decklid latch (3) on the decklid to aid in installation.
6. Disconnect the wire harness connector (1).
7. Remove the two bolts (2) and the decklid latch.
8. Unclip the linkage strap from the lock cylinder, if equipped.
