Fascia, Rear: Removal

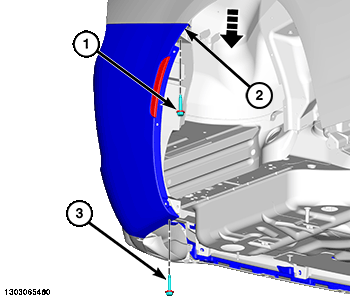

GC0170752Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Raise and support the vehicle.
  3. Remove the three push-pin retainers that secure each rear wheel house splash shield to the rear fascia assembly.
  4. Remove the fastener (1) that secures the rear fascia assembly to the rear quarter.
  5. Pull down on the end of the bracket (2) to allow the fascia to be pulled out.

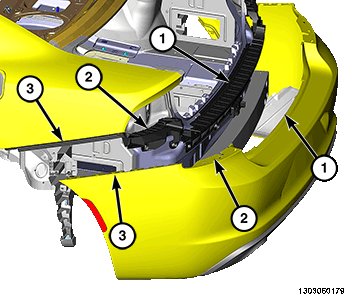

    GC0170753Courtesy of CHRYSLER GROUP, LLC
  6. Remove the fasteners (3) that secures the rear fascia assembly to the rear fascia support bracket.
  7. Remove the taillamps. Refer to LAMP, TAIL STOP TURN, REMOVAL .
  8. Pull out on the fascia (2) at the wheel house opening to disengage the fascia from the retaining bracket. Repeat on the opposite side.
  9. With the help of an assistant, pull rearward to disengage the fascia (1) from the rear retaining bracket. Do not completely remove at this time.
  10. Disconnect the marker light electrical connectors.
  11. With the help of an assistant, remove the fascia (1) from the vehicle.
