Lamp, Trunk: Removal: Lamp

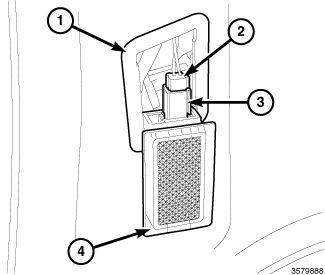

GC0144937Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Using a trim stick or another suitable flat wide-bladed tool, gently pry the upper (notched) edge of the trunk lamp lens (4) out from the mounting hole (1) in the right or left trunk side trim panel.
  3. Disconnect the body wire harness connector (2) from the connector receptacle (3) integral to the lamp housing.
  4. Remove the lamp from the vehicle.
