Lamp, Entry And Exit: Removal: Lamp

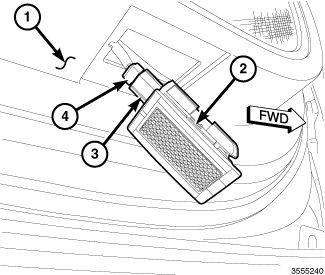

GC0144936Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Using a trim stick or another suitable flat wide-bladed tool, gently pry the forward (notched) edge of the entry and exit lamp (also known as the puddle lamp) lens (2) down from the mounting hole in the lower horizontal surface of the trim panel (1).
  3. Disconnect the door wire harness connector (4) from the connector receptacle (3) integral to the lamp housing.
  4. Remove the lamp from the vehicle.
