Lamp, Entry And Exit: Removal: Bulb

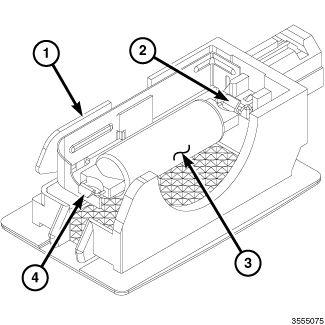

GC0144935Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the entry and exit lamp unit (1) (also known as the puddle lamp) from the bottom of the door trim panel. Refer to LAMP, ENTRY AND EXIT, REMOVAL .
  3. Gently press the movable bulb holder (4) and the bulb (3) towards the fixed bulb holder (2) far enough to disengage the wire loop terminal of the bulb from the hook of the fixed bulb holder.
  4. Disengage the wire loop terminal of the bulb from the hook on the movable bulb holder.
  5. Remove the bulb from the lamp.
