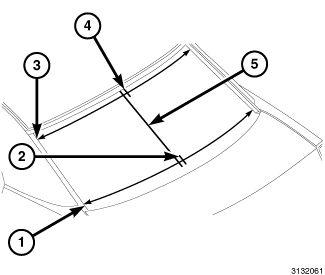

Mark IMAGER Centerline On Back Glass
- Take a measurement (3) across the upper edge of the back glass using the vertical edges of the body back glass opening as the reference points.
- Divide the upper measurement in half and mark that dimension on the glass (4) using a grease pencil. This is the upper centerline of the back glass.
- Take a measurement (1) across the lower edge of the back glass using the vertical edges of the body back glass opening as the reference points.
- Divide the lower measurement in half and mark that dimension on the glass (2) using a grease pencil. This is the lower centerline of the back glass.
- Measure and mark 27.5 millimeters (1.084 inches) toward the driver side of the back glass from the upper and lower glass centerline marks and draw a line (5) between these marks. This is the centerline of the imager.
