Lamp, Tail Stop Turn: Removal: Lamp: Center

Courtesy of CHRYSLER GROUP, LLC

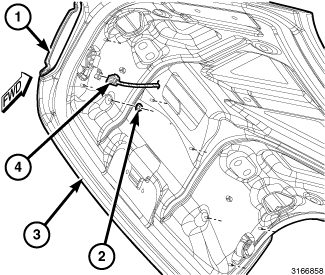

Disconnect and isolate the battery negative cable.
Remove the trim cover from the inside of the deck lid (3).
Disconnect the body wire harness connector (4) from the center tail lamp (1) connector receptacle.
Remove the eight nuts (2) that secure the center tail lamp to the inside of the deck lid inner panel.

Courtesy of CHRYSLER GROUP, LLC

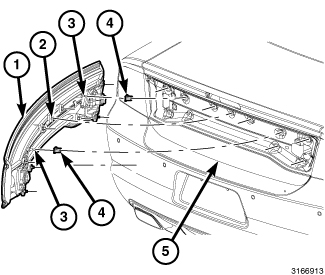

From the outside of the vehicle, grasp each end of the center tail lamp (1) firmly and pull straight rearward to disengage the two ball studs (2) from the two grommets (4) in the deck lid inner panel.
Remove the center tail lamp unit from the deck lid opening.
