Lamp, License Plate: Removal: Lamp

  1. Disconnect and isolate the battery negative cable.

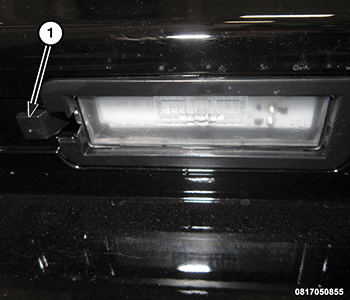

    GC0170225Courtesy of CHRYSLER GROUP, LLC
  2. Using a trim stick, release (1) the license plate lamp from the rear fascia.
    GC0170251Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the license lamp from the wiring harness connector.
