Lamp, Center High Mounted Stop: Installation

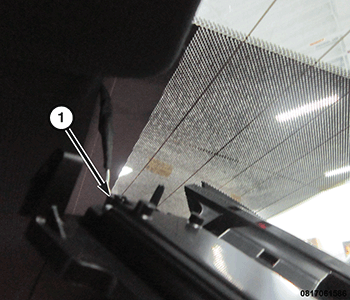

  1. GC0170679Courtesy of CHRYSLER GROUP, LLC
  2. Connect the wiring harness connector to the CHMSL.
  3. Position the CHMSL to the roof for bolt installation.

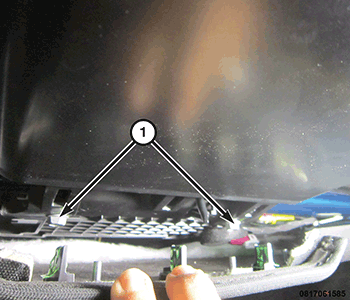

    GC0170735Courtesy of CHRYSLER GROUP, LLC
  4. Install bolts securing CHMSL to the roof.
  5. Connect the negative battery cable.
