Glass, Sunroof: Removal

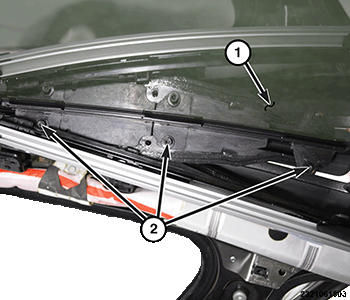

GC0170788Courtesy of CHRYSLER GROUP, LLC
  1. Remove the mechanism covers. Refer to COVER, SUNROOF MECHANISM, REMOVAL .
  2. Move the glass panel (1) to the vent position.
  3. Disconnect and isolate the negative battery cable.
  4. Remove the six glass panel fasteners (2), three per side.
  5. Lift the glass panel and remove.
