Deflector, Wind: Removal

  1. Fully open the sunshade and sunroof glass panel.
    GC0162421Courtesy of CHRYSLER GROUP, LLC

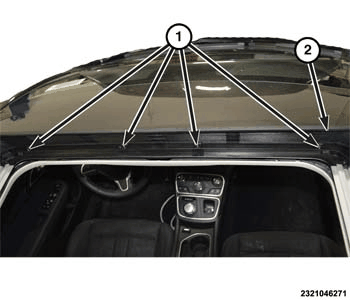

  2. Remove the four screws (1) at the front of the wind deflector (2).
    GC0162389Courtesy of CHRYSLER GROUP, LLC

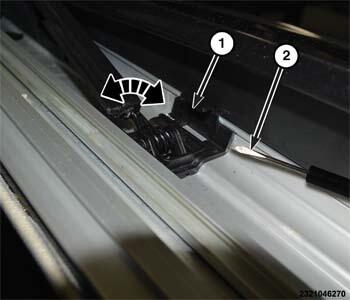

  3. Using a small flat bladed tool (2) or equivalent, release both hinges (1) from the track by prying in an inward direction.
