Cover, Sunroof Mechanism: Removal

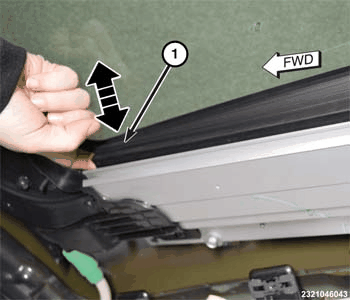

GC0162384Courtesy of CHRYSLER GROUP, LLC
  1. Slide the sunshade rearward to the open position.
  2. Move the glass panel to the vent position.
  3. Remove the mechanism cover (1) by pulling the rear edge inboard.
