Channel, Sunroof Drain: Removal
CAUTION:
Vertical uprights (2) located on the channel support should be pried apart using care. If an upright is damaged during service the entire sunroof assembly will need to be replaced.
- Remove sunroof glass. Refer to GLASS, SUNROOF, REMOVAL .

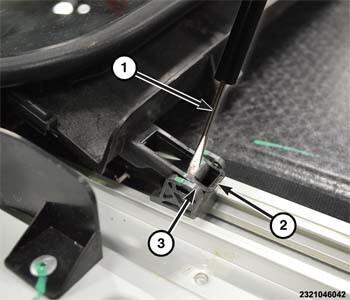

- Using a small flat bladed tool (1), pry apart each vertical upright (3) and remove the drain channel end (2).
