Cover, Seat Cushion, Rear: Removal

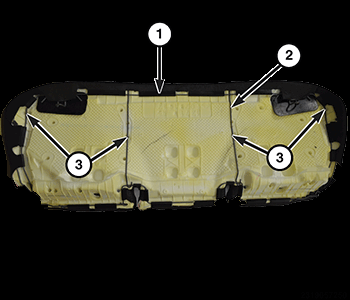

GC0170761Courtesy of CHRYSLER GROUP, LLC
  1. Remove the rear seat cushion. Refer to SEAT CUSHION, REMOVAL .
  2. Release the J-hook retainers (1) to release the seat cushion cover from the seat cushion frame (2).
  3. Remove the four hog rings (3).
  4. Remove the seat cushion frame.

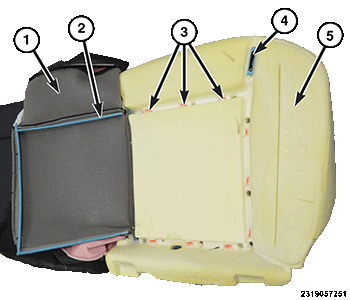

    GC0170699Courtesy of CHRYSLER GROUP, LLC
  5. Pull the seat cushion cover (1) away from the foam (5) and carefully release the clip strips (2) from the molded clips (3).
