Bolster, Seat: Removal

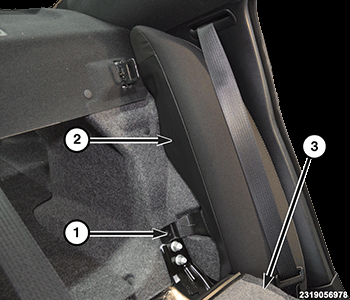

GC0170826Courtesy of CHRYSLER GROUP, LLC
  1. Fold the rear seat back forward.
  2. Lift the rear seat back carpet (3) and remove the bolt (1).

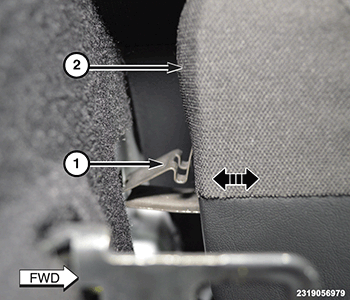

    GC0170787Courtesy of CHRYSLER GROUP, LLC
  3. Using a trim stick or equivalent, push down on the retaining clip (1) at the top of the rear seat bolster (2) and pull the rear seat bolster forward to remove.
