Armrest, Rear: Removal

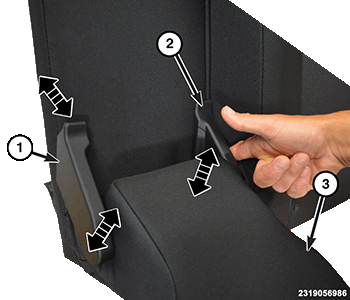

GC0170741Courtesy of CHRYSLER GROUP, LLC
  1. Pull forward at the top then lift to remove the armrest outer hinge cover (1).
  2. Push the tab behind the armrest inner hinge cover (2) and then lift and remove.

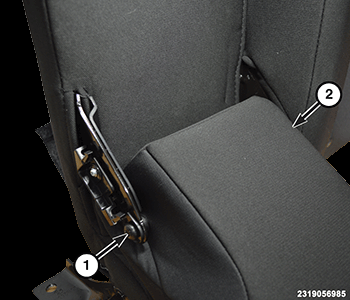

    GC0170771Courtesy of CHRYSLER GROUP, LLC
  3. Remove the armrest pivot bolt (1).
  4. Pivot the armrest (2) out and remove.
