Panel, B-Pillar Trim: Removal
- Lift the cowl side trim (1) at the rear, then pull rearward and remove.
- Adjust the front seat to the forward position.
- Using a trim stick or equivalent, release the front edge of the rear door sill.
- Remove the door opening weatherstrip from the front and rear of the B-pillar.

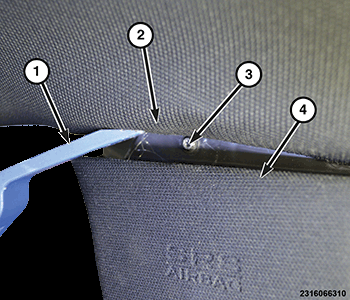

- Using a trim stick (1) or equivalent, carefully lift the headliner (2) and remove the hidden screw (3) at the top of the B-pillar trim panel (4).
- Move the seat belt height adjuster to the lowest position.

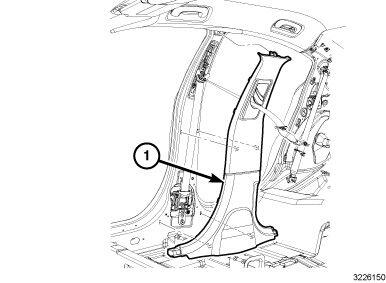

- Starting at the bottom of the B-pillar trim panel (1), pull by hand to release the retaining clips and remove.
