Driver Side

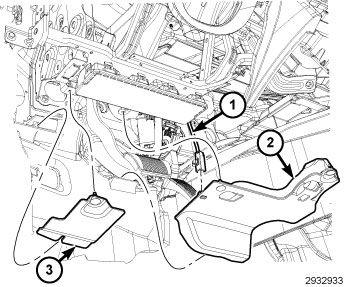

GC0144503Courtesy of CHRYSLER GROUP, LLC
  1. Remove the three push fasteners that secure the instrument panel closeouts (2 and 3) to the instrument panel bracket.
  2. Disconnect the wire harness connector (1) and remove.
