Cylinder, Glove Box Lock: Removal

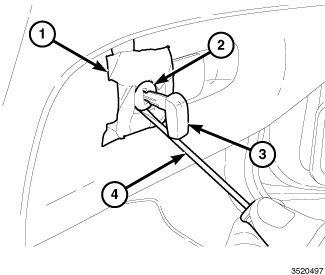

- Prior to removal, place masking tape (1) or equivalent around the perimeter of the lock cylinder (2).
- Insert the key (3) into the lock cylinder (2) and turn the key into the locked position.
- Insert a small flat bladed screwdriver (4) into the opening between the lock cylinder and bezel at the 6 o'clock position.
- Apply downward pressure on the screwdriver while turning the key clockwise approximately 45 degrees.

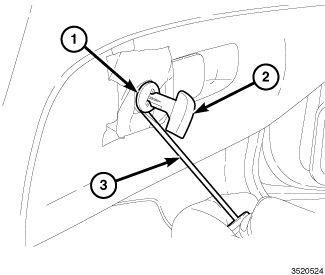

- Remove the lock cylinder (1), key (2) and screwdriver (3) together.
