Inlet, Fresh Air: Removal

NOTE:

On SRT 8 models only.

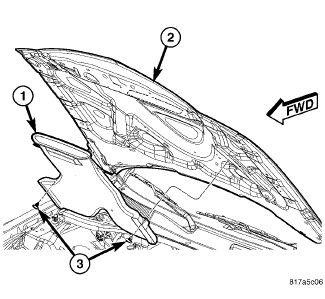

GC0080707Courtesy of CHRYSLER GROUP, LLC
  1. Remove hood liner.
  2. Remove push pins (2) and remove air inlet (1) from hood (2).
