DECKLID/Hatch/Liftgate/Tailgate/Swing Gate: DECKLID: Removal

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect and isolate the negative battery cable.
2. Remove the push fasteners (1) and the decklid hinge covers (2).

   Courtesy of CHRYSLER GROUP, LLC

3. Remove the pull handle cover (1), remove the screws and the pull handle (2).
4. Remove the push fasteners (4) and the decklid trim cover (3).

   Courtesy of CHRYSLER GROUP, LLC

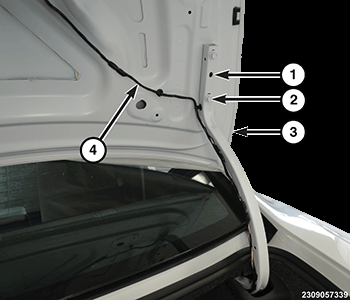

5. Unclip the wire harness (4) from the decklid (3) and disconnect all wire harness connectors.
6. Using a grease pencil or equivalent, mark the position of the decklid hinge (1) on the decklid to aid in installation.
7. With the aid of an assistant supporting the decklid, remove the bolts (2) and the decklid.
