Gap And Flush: Specifications

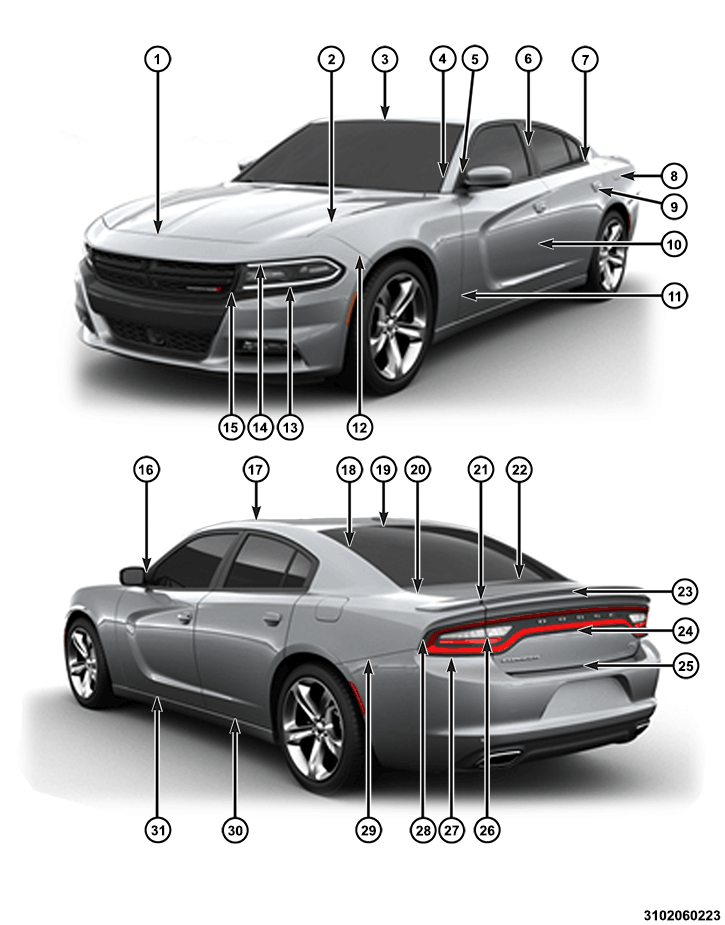

GC0170600Courtesy of CHRYSLER GROUP, LLC
NOTE:

All measurements are in millimeters.

O/F = Over Flush
U/D = Up/Down		 U/F = Under Flush
F/A = Fore/Aft

DIMENSION DESCRIPTION GAP FLUSH Alignment
1 Hood to Fascia 3.5 +/- 1.5 Hood U/F 1.0 +/- 1.5 -
    Parallel within 1.5 Consistent within 1.5
2 Hood to Fender 3.5 +/- 1.0 Hood U/F 1.0 +/- 1.5 At Fascia: Hood U/F 3.5 +/- 1.5
    Parallel within 1.5 Consistent within 1.5 Side to Side within 1.5
    Side to side within 1.5 Side to side within 1.5
3 Windshield to Roof Isolator: No Gap 0.0 Glass: U/F 2.5 +/- 1.5 -
    Glass: 6.0 +/- 2.0 Consistent within 1.0
    Parallel within 2.0
4 Windshield to Body Side Isolator: No Gap 0.0 - -
    Glass: 6.0 +/- 2.0
    Parallel within 2.0
    Side to side within 2.0
5 Front Door Belt Molding to Body Side 5.0 +/- 1.5 Belt Molding: O/F 0.5 +/- 1.5 -
6 Front Door Applique to Rear Door Applique 4.0 +/- 1.5 0.0 +/- 1.5 -
    Parallel within 1.5 Consistent within 1.5
15
7		 Rear Door Belt Molding to Body Side 4.5 +/- 1.5 Belt Molding: O/F 1.0 +/- 1.5 -
8 Fuel Filler Door to Body Side Belt Molding: 3.0 +/- 1.0 Door: U/F 0.5 +/- 1.0 -
    Parallel within 1.0 Consistent within 1.0
9 Rear Door to Body Side 4.0 +/- 1.0 0.0 +/- 1.0 Feature Line 0.0 +/- 1.5 U/D
    Parallel within 1.5 Consistent within 1.5
10 Front Door to Rear Door 4.0 +/- 1.0 Front Door O/F 0.8 +/- 1.0 Feature Line 0.0 +/- 1.5 U/D
    Parallel within 1.5 Consistent within 1.5
11 Fender to Front Door 4.0 +/- 1.0 Fender O/F 0.8 +/- 1.0 Feature Line 0.0 +/- 1.5 U/D
  Feature Line 0.0 +/- 1.5 U/D Parallel within 1.0 Consistent within 1.0
12 Fascia to Fender Net to 0.5 Top 0.0 +/- 1.0
Side Fascia O/F 0.0 +/- 0.5		 At Wheelhouse 0.0 +/- 1.0
      Consistent within 1.0
13 Front Fascia Applique to Headlamp At Bottom 2.0 +/- 1.5 Transition to 3.0 Outboard - -
    Parallel within 1.5

14 Headlamp to Fascia At Top 2.0 +/- 1.5 At Outboard 3.0 +/- 1.5 - -
    Parallel within 1.5
    Side to side within 1.5
15 Upper Fascia Grille to Surround to Headlamp 3.0 +/- 1.5 Surround O/F 4.0+/- 1.5 Transition to 5.0 at Bottom -
    Parallel within 1.5 Consistent within 1.5
    Side to side within 2.0
16 Mirror Flag to Door Lip Opening Molding 1.5 +/- 1.5 Flag O/F 0.5 +/- 1.5 -
17 Sunroof to Roof No Gap Front of Sunroof U/F 0.0 to 2.0 -
      Rear of Sunroof 0.0 +/- 1.0
      Consistent within 1.0
18 Backlight Molding to Body Side No Gap - -
19 Backlight Molding to Roof No gap Glass: U/F 2.0 +/- 2.0 -
      Consistent within 1.5
20 Decklid to Body Side Aperture 3.5 +/- 1.0 Decklid U/F 1.0 +/- 1.5 U/D 0.0 +/- 1.5
    Parallel within 1.0 Side to Side within 1.5
    Transition at Front to 9.0
21 Decklid Spoiler to Body Side Aperture Spoiler 8.5 +/- 2.0 Decklid Spoiler U/F 1.0 +/- 1.5 F/A Decklid Spoiler U/F 1.0 +/- 1.5 (Front and Rear)
    Parallel within 1.5 Consistent within 1.5 Side to side within 1.5
    Side to side within 2.5 Side to Side within 1.5
22 Backlight to Decklid 8.0 +/- 2.0 - -
    Parallel within 1.5
    No Gap to Molding
23 Spoiler to Decklid 1.0 +/- 0.5 Cross Car Spoiler U/F 2.5 +/- 1.0 at hem edge F/A 419.0 to Front
        F/A 24.5 to Rear

24 Decklid Centerlamp Applique to Decklid 2.0 +/- 1.5 Lamp U/F 0.5 +/- 1.5 -
    Parallel within 1.5 Consistent within 1.5 at Top
      Transition to Lamp U/F 1.0 at Bottom
25 Decklid to Fascia U/D 6.0 +/- 1.5 - -
    Parallel within 1.5
    Cross Car Transition From 4.0 to 6.0 +/- 1.5
    Side to side within 2.0
26 Decklid Centerlamp to Body Side Aperture Taillamp 4.0 +/- 1.5 Decklid Lamp U/F 1.0 +/-1.5 0.0 +/- 1.5
    Parallel within 1.5 Consistent within 1.5 Side to side within 1.5
    Side to side within 2.0 Side to side within 2.0 Transition to U/F 1.5 at Bottom
27 Body Side Aperture Taillamp to Fascia 2.0 +/- 1.5 Taillamp U/F 1.0 +/- 1.5 -
    Parallel within 1.0 Consistent within 1.0 Transition to U/F 0.5 at Bottom Inboard
    Side to side within 2.0 Side to side within 2.0
28 Body Side Taillamp to Body Side Aperture 2.0 +/- 1.5 Taillamp U/F 1.0 +/- 1.5 -
    Parallel within 1.5 Side to side within 2.0
    Side to side within 2.0 Transition to U/F 0.5 Top Inboard
29 Fascia to Body Side Aperture Net to 0.5 Fascia U/F 0.5 +/- 1.0 Transition to 0.0 at Lamp At Wheelhouse: Fascia O/F 1.0 +/- 1.0
      Consistent within 1.0 At Lamp: 1.0 +/- 1.0
30 Rear Door to Sill 6.0 +/- 2.0 - -
    Parallel within 2.0
31 Front Door to Sill 6.0 +/- 2.0 - -
    Parallel within 2.0
