B14BE-12-Channel 10 Audio Speaker Output-Circuit Short To Battery-Beats: Notes
For a complete AUDIO SYSTEM BASE/PREMIUM wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
NOTE:

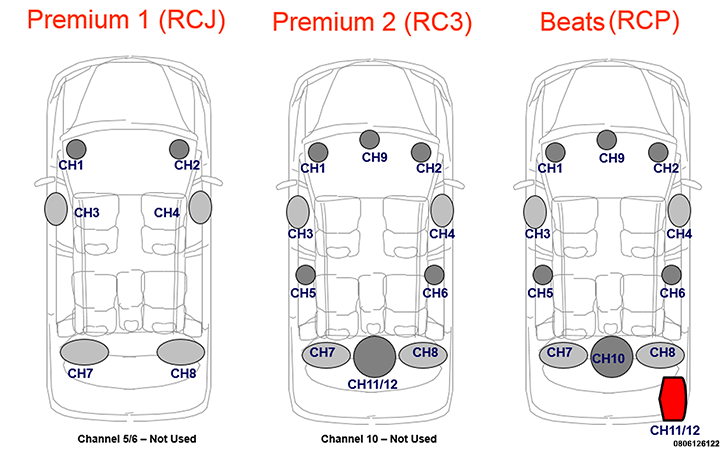

The use of speaker channel mapping and sales codes are being used to quickly identify those differences in location; and the total number of speakers in the audio system configurations noted below.
| SALES CODE | DESCRIPTION |
|---|---|
| RCJ | 6 PREMIUM SPEAKERS |
| RC3 | 9 AMPLIFIED SPEAKERS W/SUBWOOFER |
| RCP | 10 BEATS PREMIUM SPKRS W/SUBWOOFER |
