B2860-11-Door Ambient Light Control - Circuit Short To Ground: Notes

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

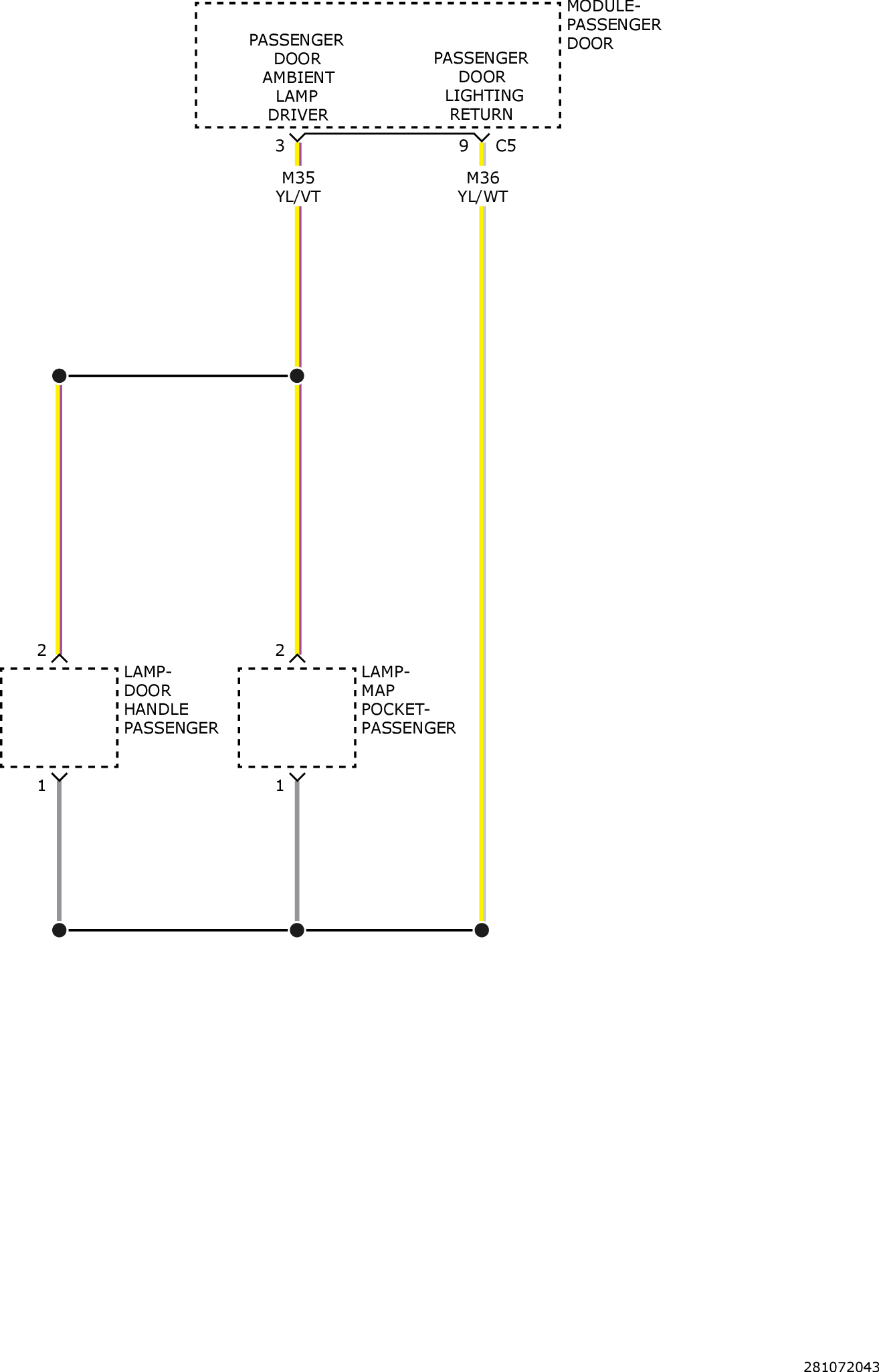

Fig 1: Passenger Door Module Ambient Light Control Circuit Diagram
GC0156847Courtesy of CHRYSLER GROUP, LLC
