B14E9-00-Channel 4 Video Continuity: Notes

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

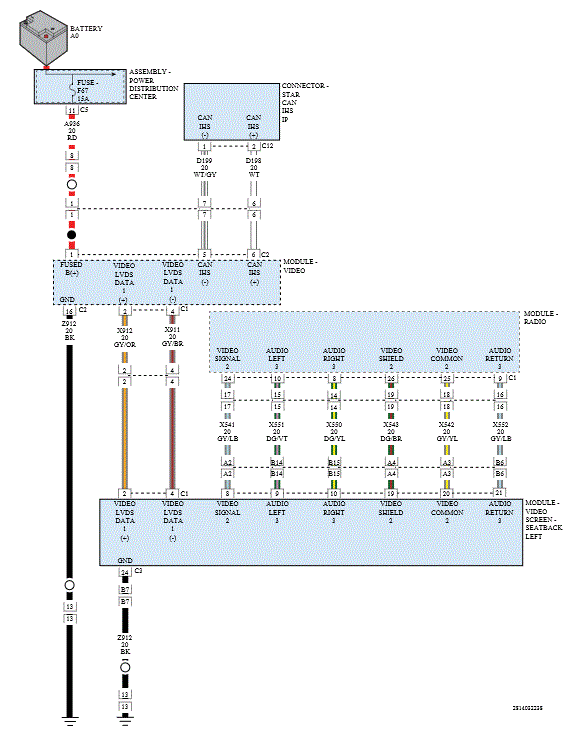

Fig 1: Video Screen-Left Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
