B1298-25-PTS Sensor 11-Signal Shape / Waveform Failure: Notes

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

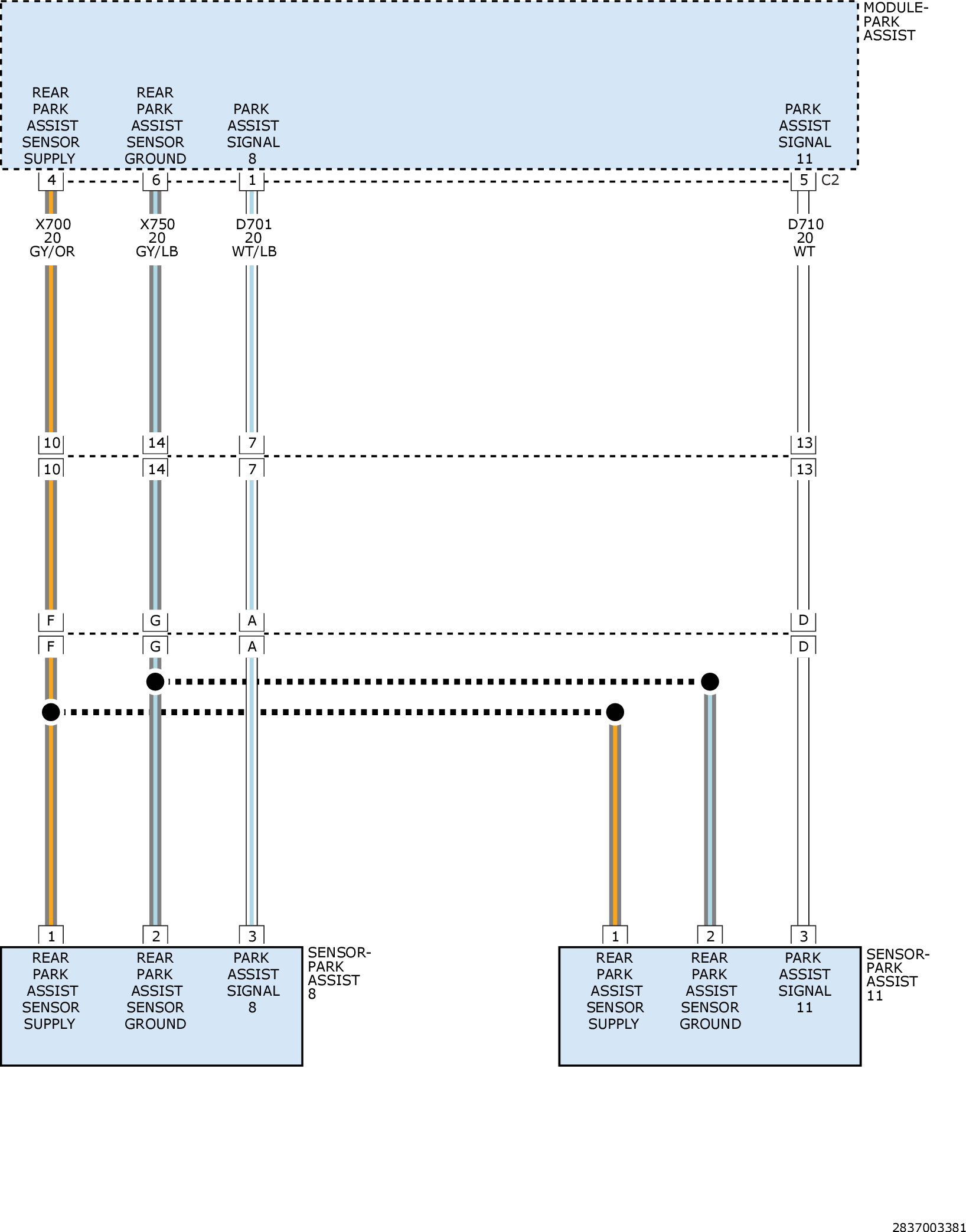

Fig 1: Park Assist Sensors Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
