Diagnosis And Testing - Sunroof Switch

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

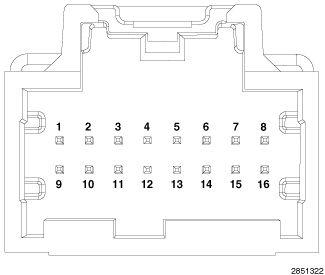

Fig 1: Sunroof Switch Connector Terminal Identification
GC0144398Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the overhead console from the headliner. Refer to CONSOLE, OVERHEAD, FRONT, REMOVAL .
  3. Disconnect the overhead wire harness connector from the overhead console connector receptacle.
  4. Using a multimeter, test the continuity between the terminals of the overhead console connector receptacle while actuating the power sunroof switch as shown in the Sunroof Switch Tests chart .
    SUNROOF SWITCH TESTS
    SWITCH POSITION CONTINUITY BETWEEN PINS
    OFF NO CONTINUITY
    OPEN 9 and 12
    CLOSE 11 and 12
    VENT 10 and 12
  5. If the switch fails any of the tests, replace the overhead console and the switch as a unit.
