P2314-Ignition Coil 5 Secondary Circuit - Insufficient Ionization: Notes

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

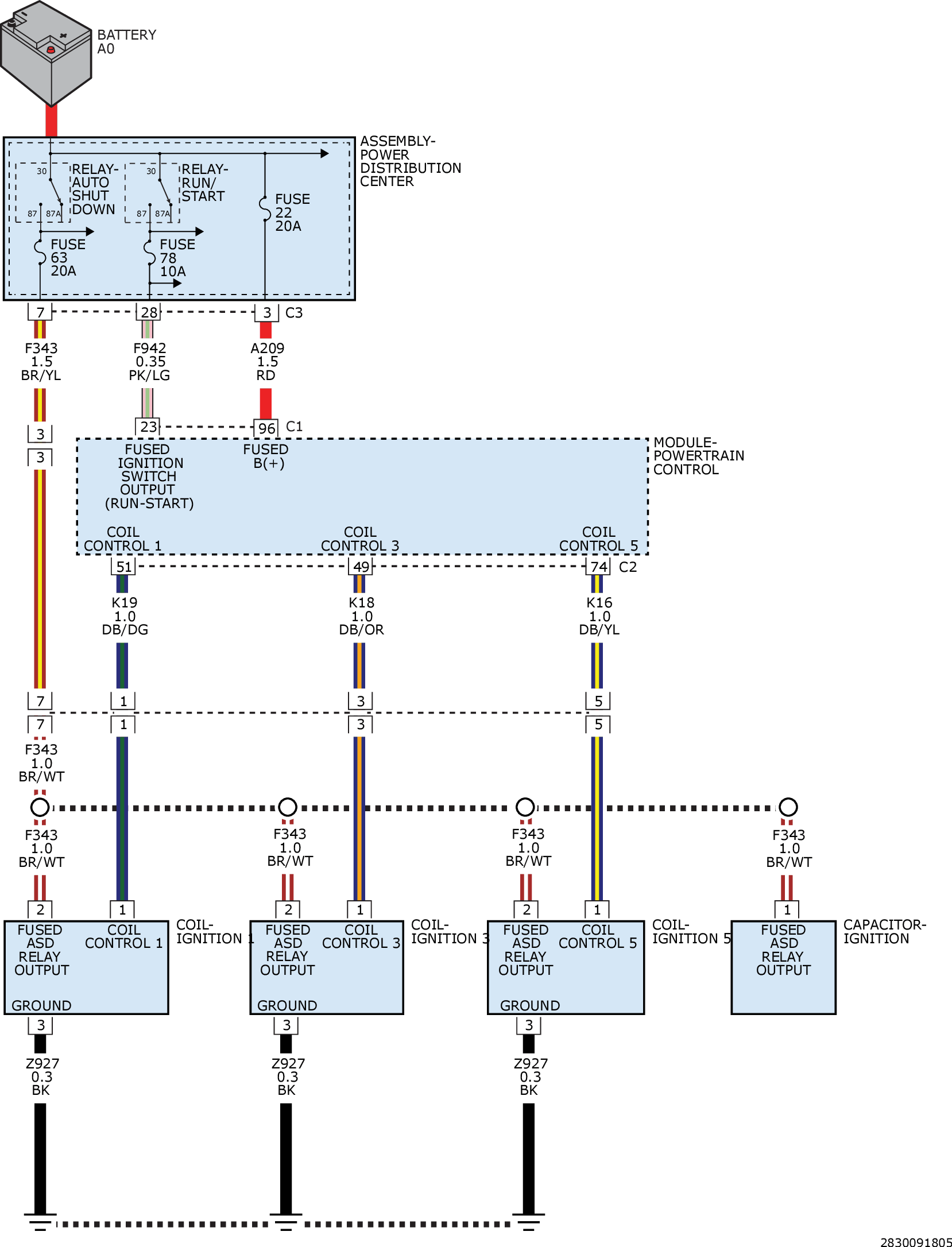

Fig 1: Ignition Coil 1 Circuit Diagrams

Courtesy of CHRYSLER GROUP, LLC
