P0688-ASD/Main Sense Circuit: Notes

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

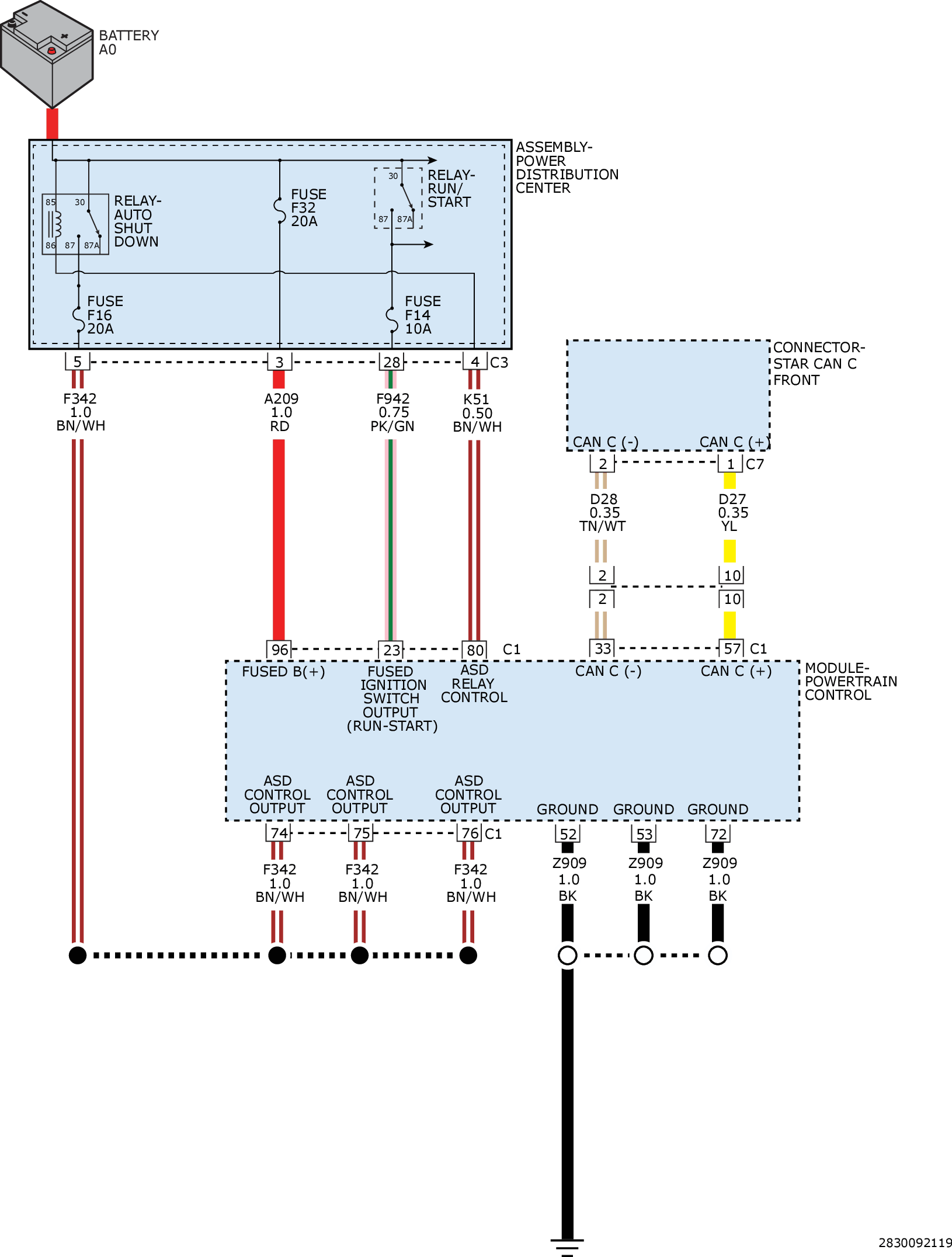

Fig 1: ASD/MAIN Control Circuit Diagrams

Courtesy of CHRYSLER GROUP, LLC
