Switch, Washer Fluid Level: Installation: Installation
WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

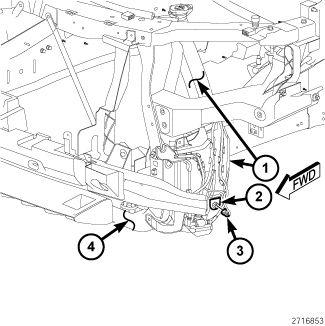

- Lubricate a new rubber grommet seal with clean washer fluid and install it into the washer fluid level switch mounting hole located in the outboard side of the washer reservoir (1) on the back of the left end of the Front End Module (FEM) carrier (4). Always use a new rubber grommet seal on the reservoir.
- Insert the nipple formation of the switch (2) through the rubber grommet seal in the reservoir.
- Using hand pressure, press firmly and evenly on the switch mounting flange until the barbed nipple is fully seated in the rubber grommet seal in the reservoir. The flat edge of the switch mounting flange should be pointed upward.
- Connect the FEM wire harness connector (3) to the switch connector receptacle.
- Connect the front washer hose to the washer pump/motor unit outlet nipple.
- Install the plastic push-in fasteners that secure the left front wheelhouse splash shield to the inner fender panel and the front fascia. Refer to SHIELD, SPLASH, WHEELHOUSE, INSTALLATION .
- Remove the support and lower the vehicle.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
- Fill the washer reservoir with the washer fluid drained during the removal procedure.
